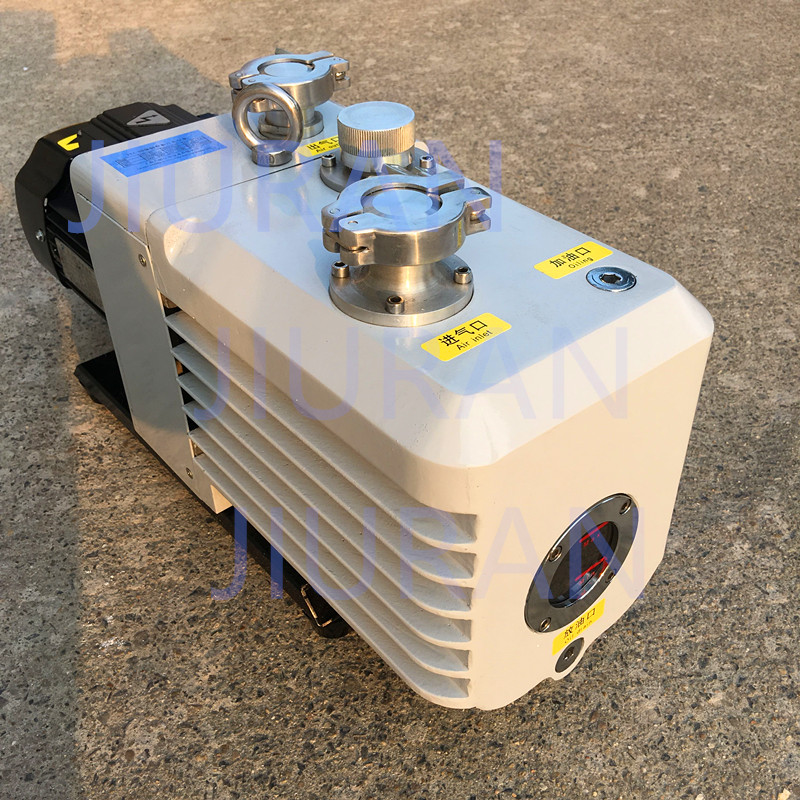

2XZ-B series direct-coupled rotary vane vacuum pump

The series pumps are suitable for pumping air and other gases. The oil pump forced oil device, the inlet pressure is less than 1.33×103 when, can continuously operating advantages. It can be used alone, can also be used for the booster pump, diffusion pump, molecular pump, maintain the pump, titanium pump vacuum pump, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum, vacuum forming, food packaging, printing, sputtering, vacuum casting, photovoltaic, air fields of science and technology, chemical, electronic, refrigerator, air conditioner pipeline and laboratory vacuum operation and supporting the use of.

1、 features

The preparation for the special design of town gas valve, prevent pump oil mixed with water, to extend the pump oil service time;

A、 the pumping efficiency is high, the ultimate vacuum high, long service life;

B、, equipped with automatic anti-returning oil check valve, never returned to oil;

C、 small diameter 2XZ-2B, 2XZ-4B, 2XZ-8B vacuum pump with vacuum drying box, freeze-drying machine, printing machinery;

D、 with small caliber conversion connector, KF interface, the interface of the flange;

E、 when the suction containing vapor, particle, corrosive gases, in the intake port of the pump shall be fitted with auxiliary equipment, such as condenser, dust collector.

Parameters/Model

2XZ-2B

2XZ-4B

2XZ-6B

2XZ-8B

2XZ-15B

2XZ-25B

 Pumping speed m3/h(L/S)

50(HZ)

7.2(2)

14.4(4)

21.6(6)

28.8(8)

54(15)

90(25)

60(HZ)

8.6(2.4)

17.2(4.8)

26(7.2)

34.5(9.6)

64.8(18)

108(30)

Ultimate

pressure

partial

pressure

≤4×10-2

≤4×10-2

≤4×10-2

≤4×10-2

≤4×10-2

≤4×10-2

(Pa)

Total pressure

≤1

≤1

≤1

≤1

≤1

≤1

rotary speed(r/min)

50(HZ)

1400

1400

1400

1400

1400

1400

60(HZ)

1720

1720

1720

1720

1720

1720

Motor power(kw)

0.37

0.55

0.75

1.1

1.5

2.2

Voltage(V)

220/380

220/380

380

380

380

380

Inlet Diameter(mm)

φ30

φ30

KF -40

KF -40

KF -40

KF -50

KF -25

KF -25

Noise level(dBA)

65

65

68

70

72

72

Oil capacity(L)

1

1.2

2

3

4

5

Dimensions(mm)

514×168×282

565×168×282

565×200×342

650×240×430

700×240×430

770×240×430

Gross weight/Net weight(Kg)

21/19

23/21

45/40

58/52

72/64

98/85

 3、Pumping speed curce

4、Mounting dimensions



5、Size of installation diagram

型号
A
B
C
D
E
F
G
H
I
J
K
L
M
N
2XZ-4B
528
166
122
150
250
102
290
45
70
100
130
145
235
275
2XZ-6B
540
275
150
150
290
110
330
60
95
142
190
196
290
330
2XZ-8B
640
300
150
220
350
90
390
80
115
170
230
236
340
410
2XZ-15B
700
360
180
220
350
142
390
80
115
170
230
236
340
410
2XZ-25B
780
390
200
260
350
142
390
90
135
212
270
276
400
465
