Central Vacuum Systems
I. Technical Parameter:
|
Item |
Unit |
JR-XD-40 |
JR-XD |
JR-XD |
JR-XD |
JR-XD |
JR-XD |
JR-XD |
|
Rated Speed |
m3/h |
40 |
63 |
100 |
160 |
202 |
250 |
302 |
|
Utmost Pressure |
mbar |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
|
Pump Model |
set |
XD-40 |
XD-63 |
XD |
XD |
XD |
XD |
XD |
|
Air Outlet Size |
inch |
1*G11/4 |
2*G11/4 |
2*G11/4 |
1*G2 |
1*G2 |
1*G2 |
1*G2 |
|
Buffer Tank Volume |
L |
125 |
125 |
125 |
300 |
300 |
400 |
400 |
|
Air Inlet Size |
inch |
G11/4 |
G11/4 |
G11/4 |
G2 |
G2 |
G2 |
G2 |
|
Motor Rated Power |
kW |
1.1 |
1.5 |
2.2 |
4 |
4.8 |
5.5 |
7.5 |
|
Size |
cm |
124×41×99 |
150×51×115 |
150×51×115 |
179×66×154 |
179×66×154 |
183×70×154 |
183×70×154 |
|
Weight |
kg |
115 |
150 |
164 |
317 |
317 |
385 |
390 |
2. Summarization:

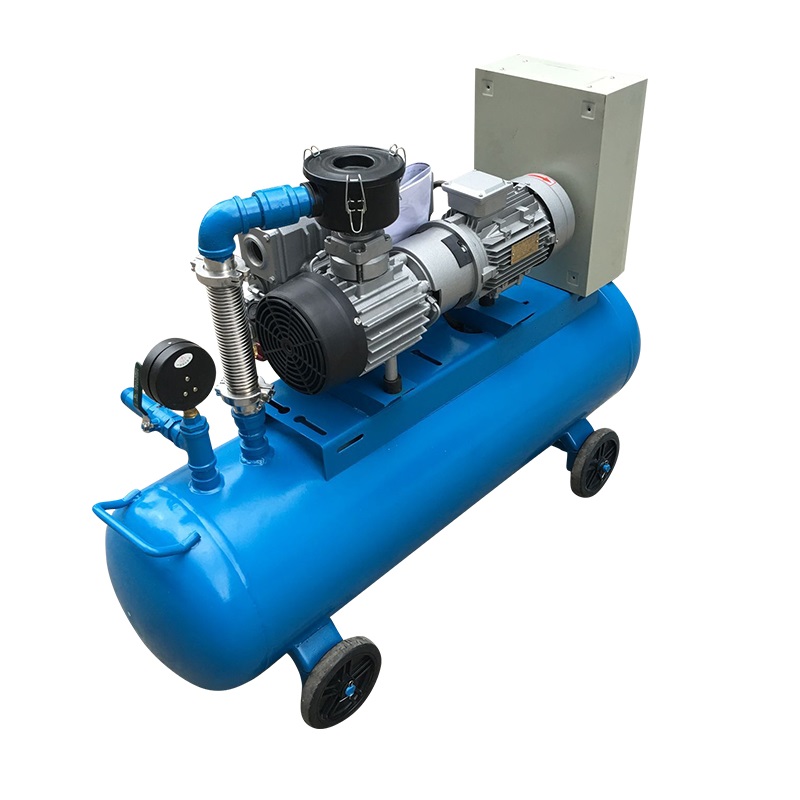

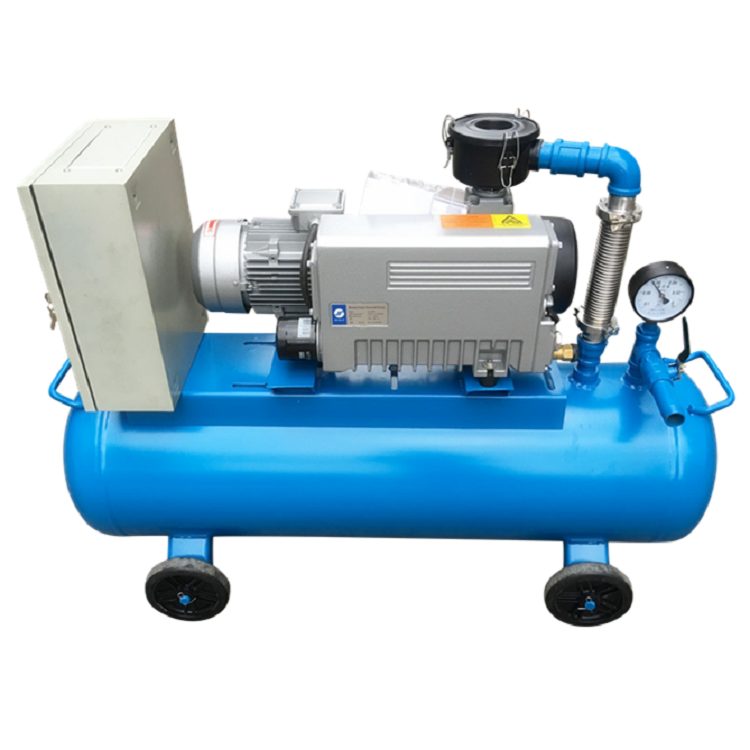

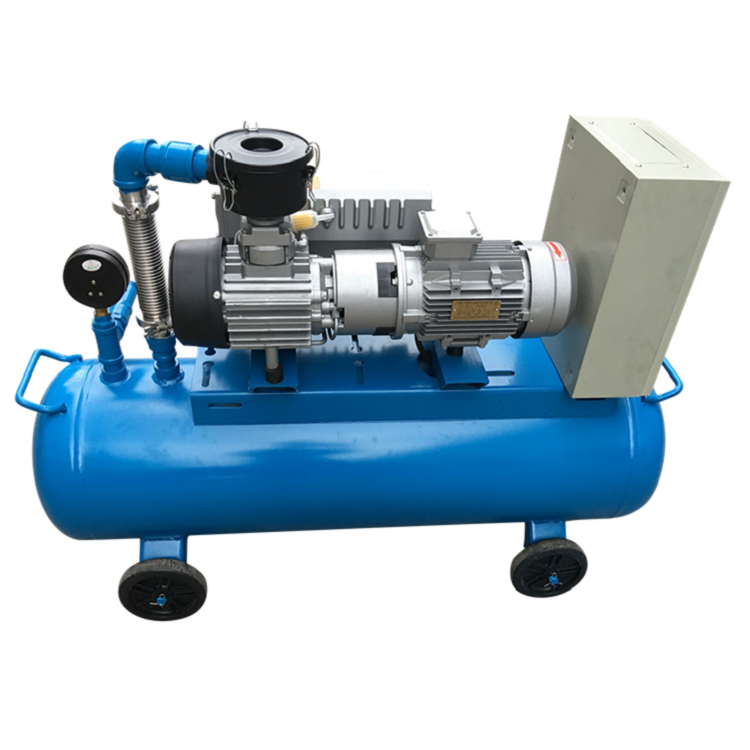

JR series single stage rotary vane vacuum pump system is a new type vacuum suction equipment, combined one XD type single stage rotary vane vacuum pump with buffering air tank and electric-supply box, thus making up the shortage in usage
a. Enlarge the capacity of suction—It can increase the total or instant suction using two or above vacuum pumps and a buffering air tank.
b. Save electrical power—– It can make this with a buffering air tank equipped with vacuum meter. ( It depends on the actual circumstance)
c. Extent its using life—–It can reduce the raise of pump’s temperature to prevent over-heating. It cuts the running time under the control of vacuum meter. It can prevent foreign matter or granule entering the vacuum pump with buffering air tank and inlet filter.
d. Prevent oil circumfluence—- The group adds the part of oil-back preventing. The oil won’t be sucked into the vessel when the equipment stops.
3. Application Range:
JR series Vacuum pump is suitable for applying on the environment of temperature between 5~30°C and humidity less than 80%, our XD series vacuum pump is capable to deflate air less than one atmosphere from vessel, it is prohibited to use for the gas with acidity, cauterization, toxin, flammability, explosive and any elements which can court damage of pump.
JR series single-grade rotating patch vacuum pump can be applied to the work of vacuum absorbing plastic film, vacuum packing, vacuum exhausting, vacuum Air-eliminating, vacuum suction, vacuum distillation, vacuum abruption, vacuum molding, vacuum casting, vacuum transportation, vacuum heat treatment and welding etc. the applicable field includes hospital, machine, chemical, metallurgy, electron, electric, press & textile etc.
JR series single-stage rotary vane pump also can be combined according to using-purpose to enlarge use range:
a. Enlarge deflating capacity
b. Suck mass of vapour
Note: Special pump sets are not listed here
