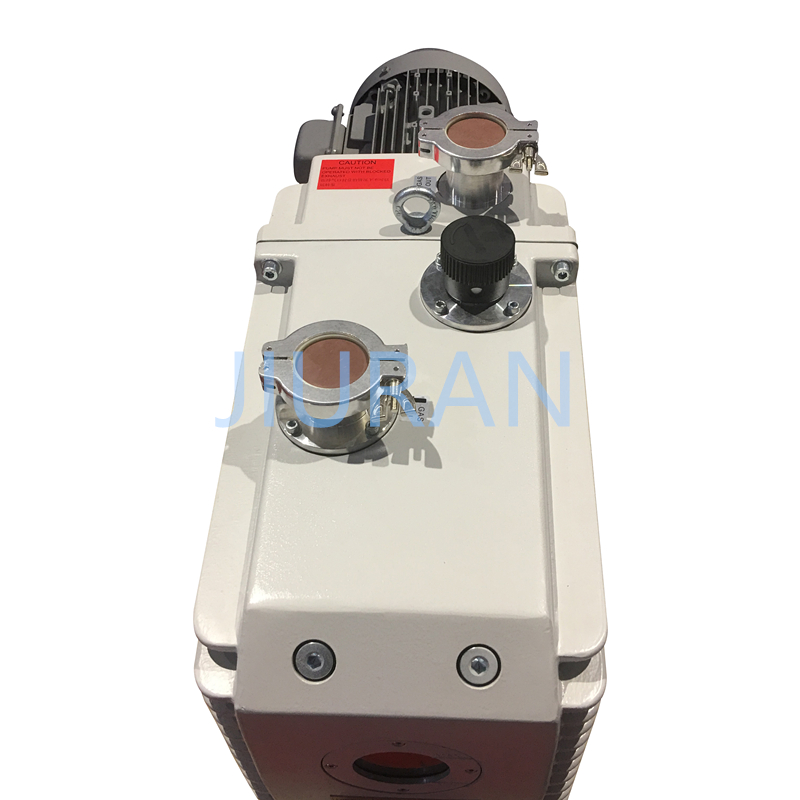

JRV48 Two Stage vacuum pump

Category:
[ssba]
INQUIRY

Description:

JRV series rotary vane vacuum pump, with the first cylinder external, do heat dissipation with the help of oil cooling and air cooling, have advantages of  high speed, low temperature, low noise, compact structure, convenient starting.

Excellent structure and performance:

1) No rotary vane spring selection  to avoid  unexpected pump stop caused by spring break.

2)  Forced feed lubrication of built-in oil pump can make the pump operating continuously and stably for a long time at the atmospheric pressure.

3) Hydraulic type oil countercurrent prevent institutions. In a oil pump check valve, minimize  backflow of oil into the pump to solve the problems that  the power outage or unexpected  pump stop then oil flow into the pump body cause hard restarting.

4) Variable oil quantity, this type pump  expands  the fuel quantity indication range to get easy oil management.

Applications:



Coating ,lighting, refrigeration, vacuum drying, freeze drying, solar energy, instruments analysis, leak detection equipment ,packaging and heat treatment metallurgy etc.

Technical parameter:

MODEL

ITME

JRV60 UNIT



Pumping Rate





50Hz 60(1000) M³/h(L/min)
60Hz 72(1200)


Margin Pressure



Gas Ballast Close 5X10-1 Pa
Gas Ballast Open 2.0
Motor Power (3 phrase,4 poles) 2.2 kW
Motor Speed 50Hz 1400 r/min
Oil Required Upper Limit 2.5 L
Lower Limit 4.2
Inlet Diameter KF40 DN
Outlet Diameter KF40 DN
Weight 87 kg
