Pressure |
|||||||||||||||
| Electrical Source |
Model Numbers |
Compressor Performance (LPM@BAR) |
Maximum Pressure (BAR) |
Ambient Air Temp |
Power (WATTS) |
Speed (RPM) |
Thermal Protector |
Net Weight |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 2.0 | 4.0 | 6.0 | 8.0 | Cintin- Uous |
Intermi- Ttent |
Rest- Art |
MIN. (℃) |
MAX (℃) |
(KG) | |||||

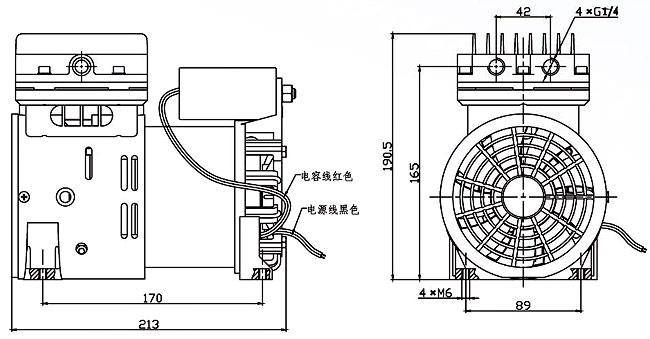

| 交流AC.50Hz | OLF550S-120 | 51.7 | 35 | 28.3 | 23.3 | 18.3 | 7.0 | 8.0 | 1.0 | -5 | 40 | 450 | 1400 | YES | 7.0 |
| 交流AC.60Hz | OLF550S-120 | 63 | 42.5 | 34.5 | 28 | 22.5 | 7.0 | 8.0 | 1.0 | -5 | 40 | 500 | 1680 | YES | 7.0 |
|
TWO-GRADE Vacuum |
||||||||||||||
| Electrical Source |
Model Numbers |
Vacuum Performance (LPM@BAR) |
Vacuum (MBAR) |
Ambient Air Temp |
Power (WATTS) |
Speed (RPM) |
Thermal Protector |
Net Weight |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | -200 | -400 | -600 | -800 | MAX- IMUM |
REST- ART |
MIN. (℃) |
MAX (℃) |
(KG) | |||||
| AC.50Hz | OLF1100D | 100.0 | 55.0 | 30.0 | 16.6 | 9.5 | -980 | 0 | -5 | 40 | 600 | 1450 | YES | 17.0 |
| AC.60Hz | OLF1100D | 100.0 | 55.0 | 30.0 | 16.6 | 9.5 | -980 | 0 | -5 | 40 | 600 | 1750 | YES | 17.0 |
| AC.50Hz | OLF1500D | 140.0 | 77.0 | 42.3 | 23.3 | 12.8 | -980 | 0 | -5 | 40 | 750 | 1450 | YES | 17.5 |
| AC.60Hz | OLF1500D | 140.0 | 77.0 | 42.3 | 23.3 | 12.8 | -980 | 0 | -5 | 40 | 750 | 1720 | YES | 17.5 |
