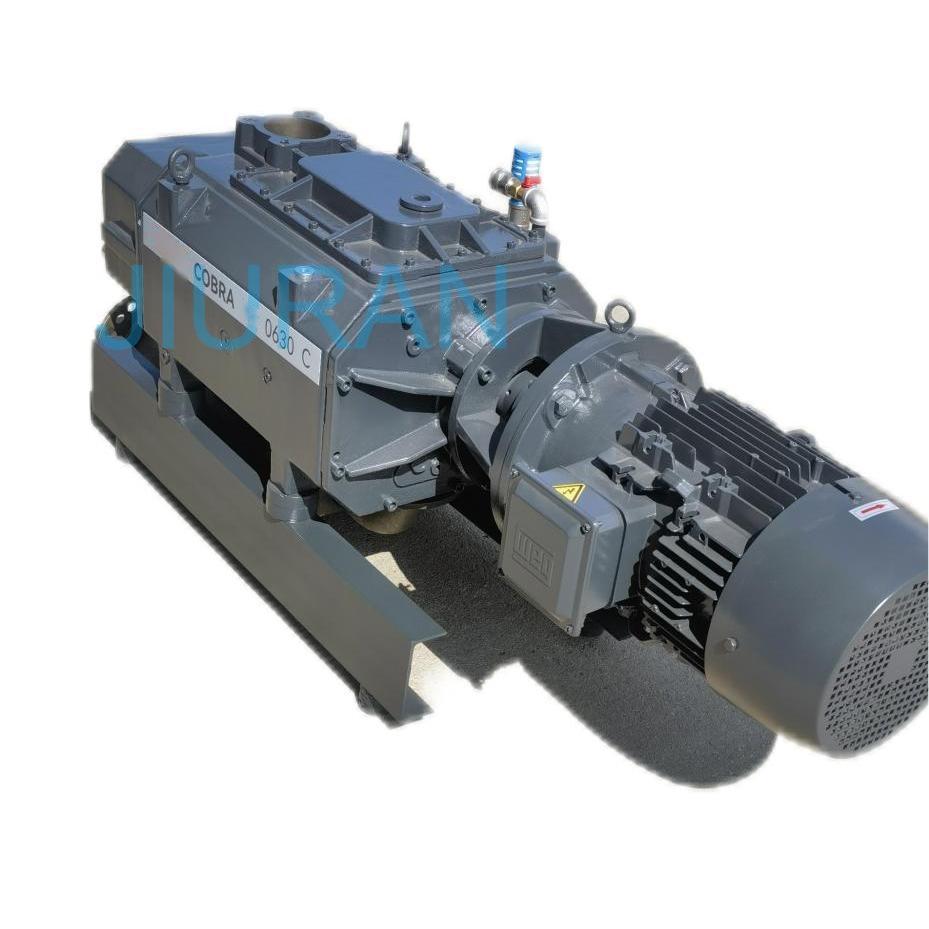

Dry Screw Vacuum Pump Air Cooled


Warning: call_user_func() expects parameter 1 to be a valid callback, no array or string given in /alidata/www/jiuranvacuum/wp-content/plugins/translatepress-multilingual/includes/gettext/class-plural-forms.php on line 104
Category:
[ssba]
INQUIRY
JR0630C
Pumping speed m³/h 630/630
(50Hz/60Hz)
Ultimate pressure(without gasballast) hPa(mbar)abs. ≤0.01
Ultimate pressure(with gasballast) hPa(mbar)abs. ≤0.1
Nominal motor rating kW 15/17
(50Hz/60Hz)
Nominal motor speed min-1 3000/3600
(50Hz/60Hz)
Noise level(ENISO2151) dB(A) ≤75/≤79
(50Hz/60Hz)
Ambient temperature range °C -20…50
Max.allowable counter pressure atthedis-charge hPa(mbar) 200
Max.allowable gas inlet temperature °C ≤50hPa(mbar)►200
>50hPa(mbar)►70
Relative humidity at30°C 90%
Ambient pressure Atmospheric pressure
Oil capacity-motor side l 1.7
Oil capacity-suction side l 0.6
Cooling liquid capacityapprox. l 33
Weight approx. kg 600
