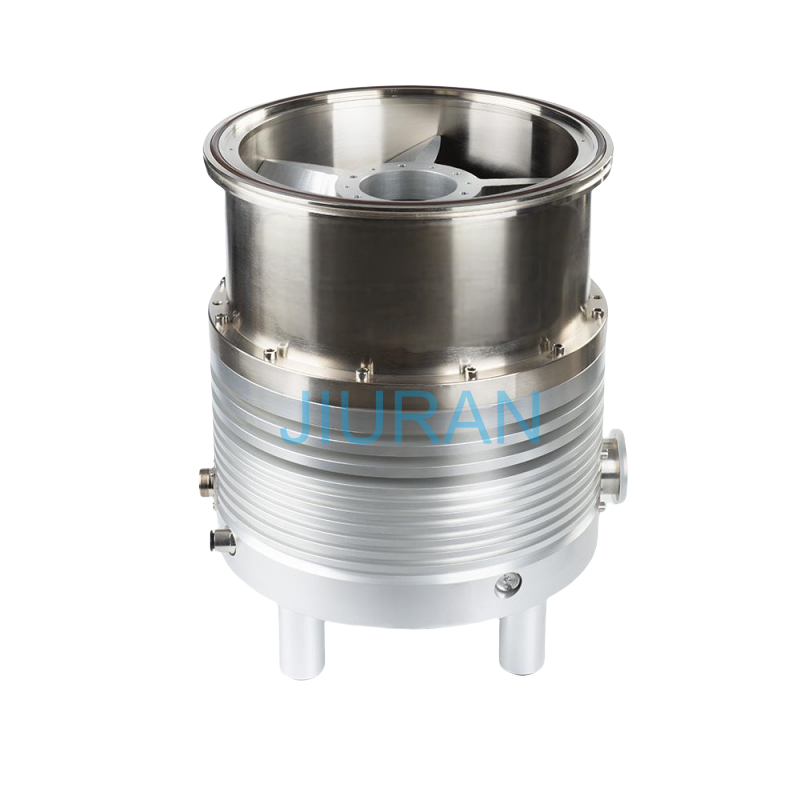

| Model | JDP-
1800 |
JDP-
1800D |
|
| Inlet flange | ISO250
CF250 |
||
| Outlet flanger | KF40mm | ||
| Pumping speed | 1800L/s | ||
| Ultimate
pressure |
Metal seal | 5×10-7Pa | |
| Rubber seal | 5×10-6Pa | ||
| Compression
ratio |
N2 | 1×10^8 | |
| H2 | 1×10^5 | ||
| Rotation speed | 24000r/min | ||
| Start-up time | <10min | ||
| Lube | 150ml or Oil-free | ||
| Mounting orientation | Vertical angle or Arbitrary angle |
||
| Cooling method | Water or Air cooled | ||
| Cooling water consumption | 90L/h | ||
| Cooling water temperature | <24℃ | ||
| Weight | 44.5Kg | ||
