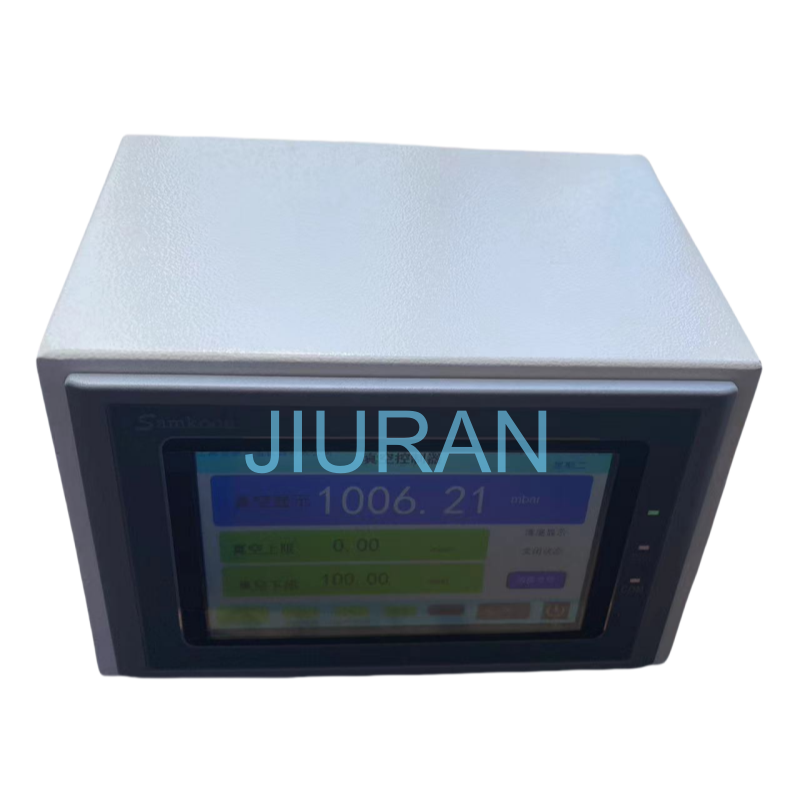

VC-3550pro
Host display: 5.5-inch color touchscreen, intelligent integrated control system
Setting range: 0.01~1013hPa (mbar)/0~0. 00000 1Mpa
Measurement range: 0.5~1013hPa (mbar)/0~-0.005Mpa
Interface size: Quick connect outer diameter of 10mm
Rated voltage: AC 220V
Frequency: 50Hz
Load capacity: ≤ 3KW
Rated power: 130W
Applicable medium: Strong acid, strong alkali gases
Composite membrane: PTFE
Volume/Weight: Instrument dimensions (length * width * height) 180 × 205 × 135mm, 2.5KG
Noise: 55db
Environmental temperature: 5-40 ℃
IP42 protection level and safety protection level testing report;
Standby power: 3W
