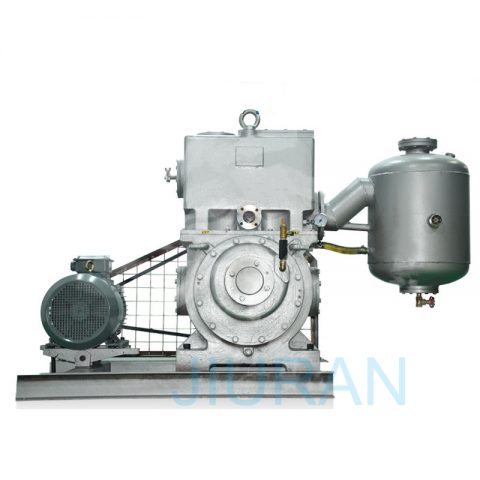

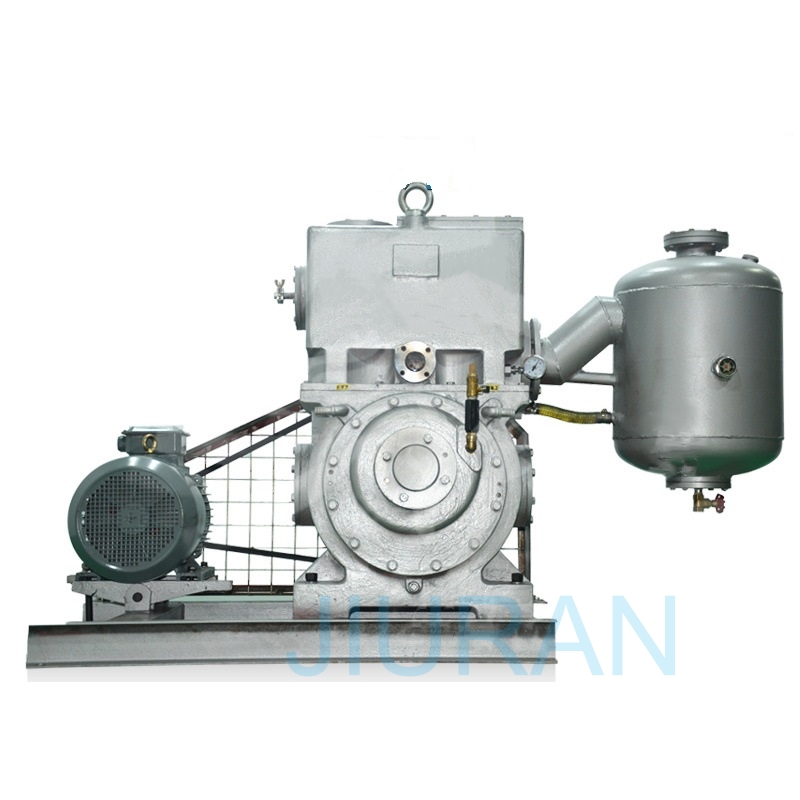

The X-150C single-stage pump can be used alone or as a booster pump, as well as a front stage pump for diffusion pumps. Widely used in transformer kerosene gas-phase drying, vacuum impregnation, vacuum drying of vegetables, food, medicine, vacuum coating, dehydration, vacuum metallurgy, etc.
| Model | X-150C | X-100C | |
| Speed (L/S) | 150 | 100 | |
| Vacuum
(Pa) |
Close Gas ballast valve | ＜0.8 | ＜0.8 |
| open Gas ballast valve | ＜15 | ＜15 | |
| Motor Speed (rpm) | 345 | 400 | |
| Power (Kw) | 15 | 7.5 | |
| inlet/outlet diameter
(mm) |
DN100 ISO | ||
| Steam extraction rate(Kg/h) | 14 | 10 | |
| Noise (db) | 70 | 68 | |
| Cool Water (L/h) | >200 | >200 | |
| Max Temperature (℃) | 80 | 80 | |
| Oil (L) | 45 | 30 | |
| Dimension (mm) | 1907×1110×1177 | 1554×854.5×972 | |
| Weight (Kg) | 1100 | 510 | |
