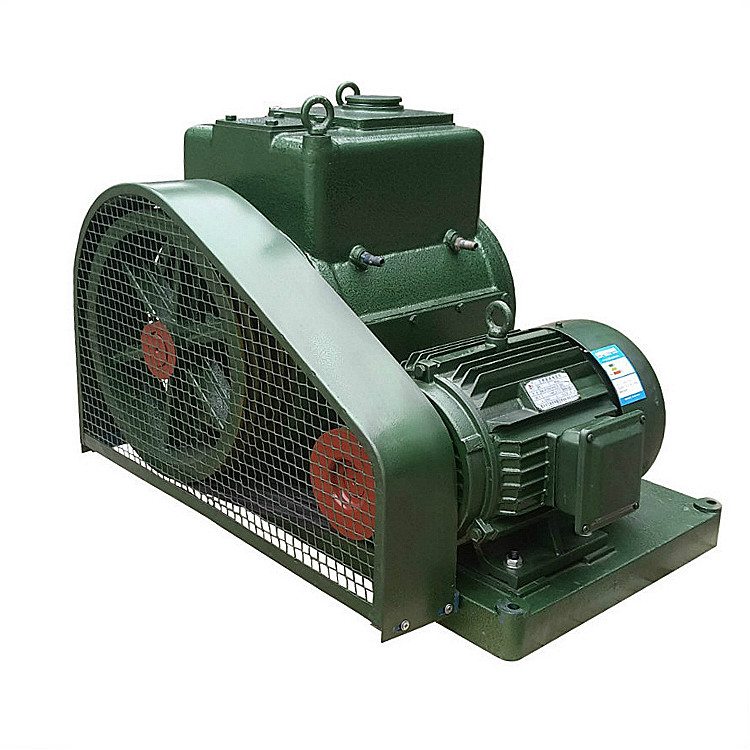

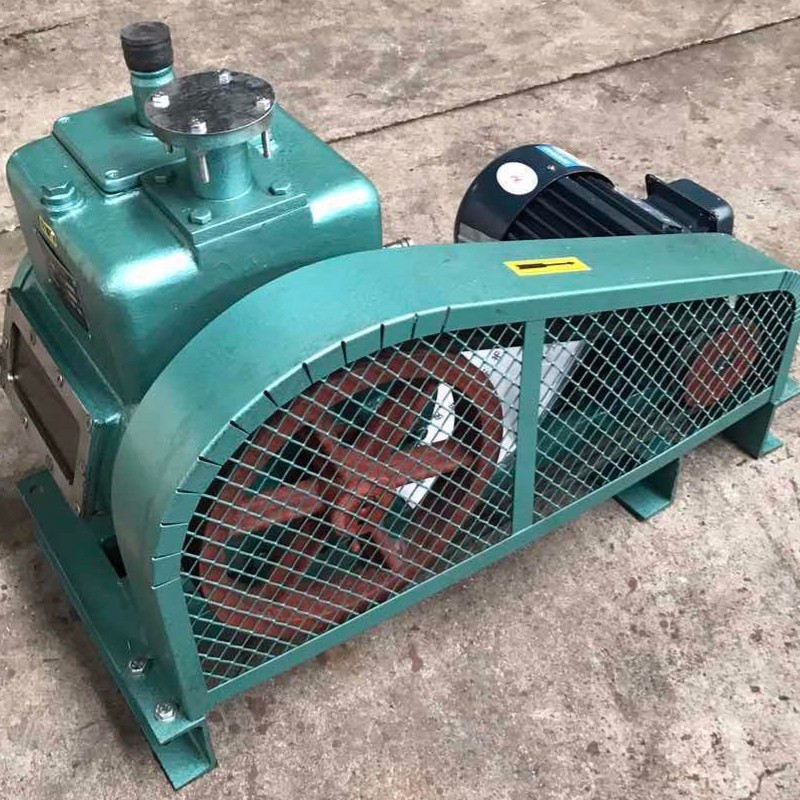

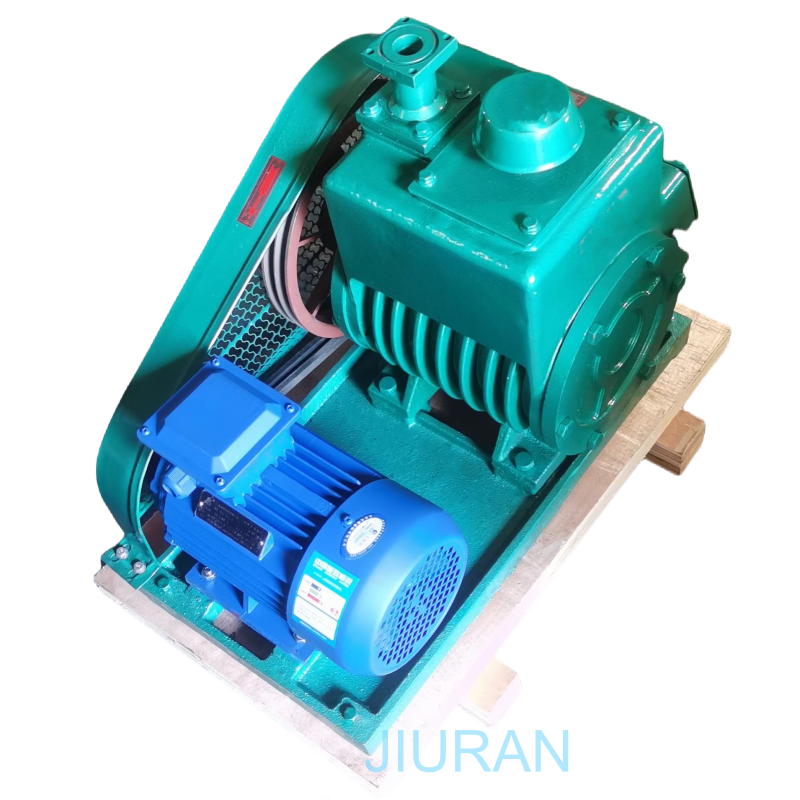

| model | 2X-4A | 2X-8A | 2X-15A | 2X-30A | 2X-70A | 2X-100A | |
| speed(L/s) | 4 | 8 | 15 | 30 | 70 | 100 | |
| pressure(Pa) | Partial pressure | ≤6×10-2 | ≤6×10-2 | ≤6×10-2 | ≤6×10-2 | ≤6×10-2 | ≤6×10-2 |
| Full pressure | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| power(kw) | 0.55 | 1.1 | 2.2 | 3 | 5.5 | 7.5 | |
| Motor speed(r/min) | 450 | 320 | 320 | 450 | 420 | 360 | |
| temperature(℃) | ≤40℃ | ||||||
| noise(dBA) | ≤75 | ≤78 | ≤80 | ≤82 | ≤86 | ≤90 | |
| Air intake diameter(mm) | 25 | 40 | 40 | 65 | 80 | 90 | |
| oil(L) | 1 | 1.5 | 2 | 3 | 4.2 | 5 | |
| dimension(mm) | 540×335×380 | 790×430×540 | 790×530×540 | 780×500×560 | 910×650×700 | 113×740×690 | |
| Applicable electromagnetic pressure valve | DDC-JQ25 | DDC-JQ40 | DDC-JQ40 | DDC-JQ65 | DDC-JQ80 | DDC-JQ100 | |
| Cooling water(L/mm) | – | – | – | 71 | 72 | 72 | |
| Gross weight / net weight(Kg) | 55/50 | 158/148 | 202/190 | 230/216 | 338/320 | 400/370 | |
